The Art of Etching Vinyl Records

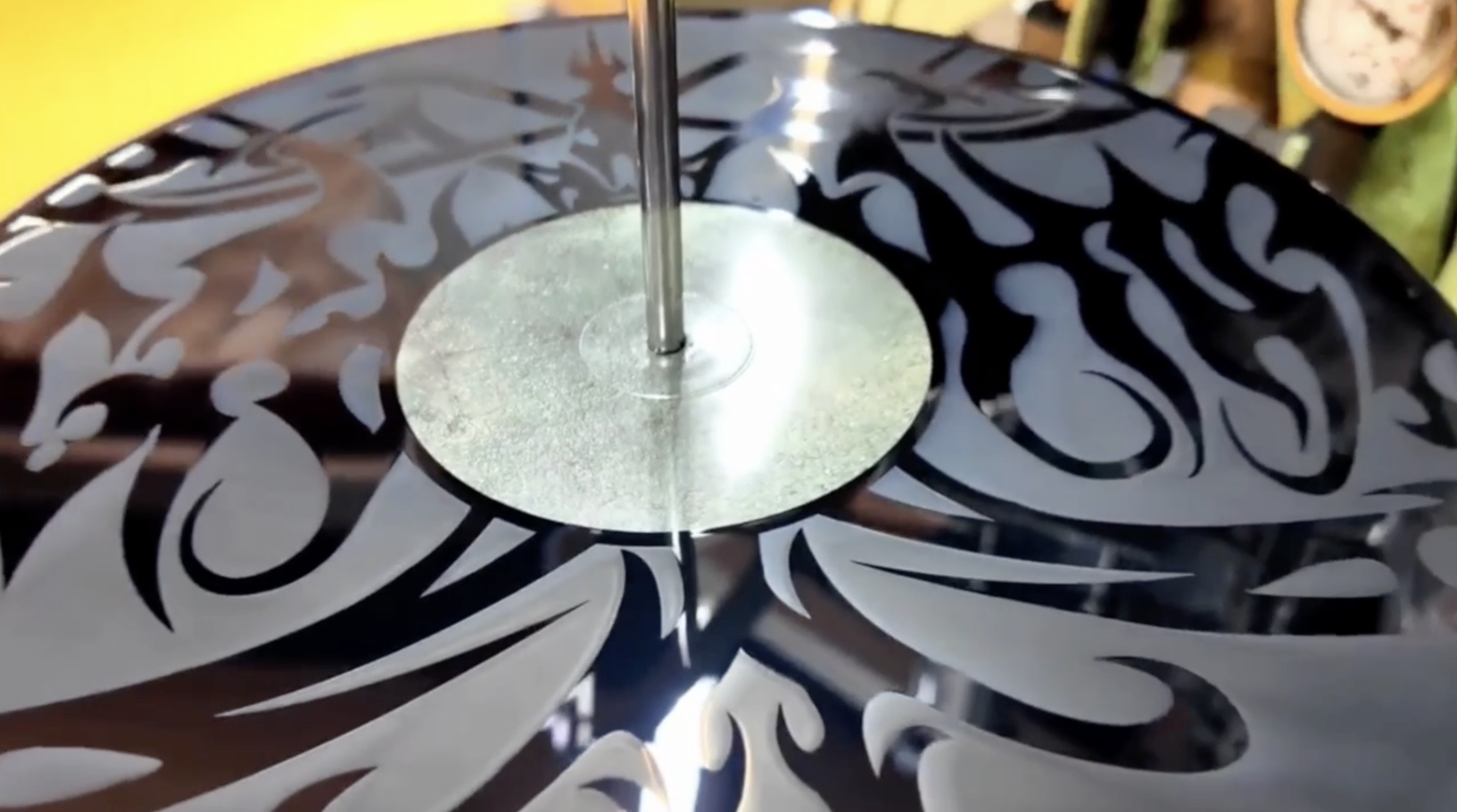

Regular vinyl records are a treat for both audiophiles and music lovers alike. But etched vinyl records take things to a whole new level, adding a visual element to the listening experience. They feature intricate designs or artwork etched directly onto the record surface, creating a truly unique and collectible item.

So, how are these beauties made? The process builds upon the traditional vinyl record creation method but adds an artistic twist at the beginning. Here's a breakdown of the key steps:

  1. Etching the Lacquer Disc

Normally, both sides of a record have grooves containing the music. However, with etched vinyl, one side is the music and the other side is a design or artwork etched into the master lacquer. This disc, traditionally made of aluminium coated with a lacquer  layer, is where the magic happens. There are two main etching techniques used:

  • Laser Etching: A high-powered laser beam guided by the digital design delicately burns the artwork onto the lacquer, vaporising a minute layer of the lacquer to create the etched design.
  •
  • Chemical Etching: A photoresist is applied to the lacquer disc, and then a photographic film containing the design is placed on top. The disc is exposed to ultraviolet light, which hardens the photoresist where the design is. The disc is then bathed in a chemical solution that dissolves the unhardened photoresist, creating the etched design on the lacquer.

2. From Lacquer to Stamper

Once the lacquer disc has the music and artwork etched onto it, a metal mold called a "stamper" is created. This is done through a process of electroplating, where the etching and grooves on the lacquer disc are filled with a thin layer of metal. This metal replica is an exact reverse of the lacquer disc, with raised ridges where the grooves were.

3. Pressing the Vinyl

With the stamper in hand, the vinyl pressing process takes over. The stampers are used to press the vinyl puck onto metal presses, creating the final etched vinyl record. This process is essentially how regular vinyl records are made.

4. A Collector's Item

Etched vinyl records are often produced in limited quantities, making them highly sought after by collectors. The unique combination of stunning visuals and high-quality audio creates a truly special music experience.

So, the next time you come across an etched vinyl record, take a moment to appreciate the artistry and craftsmanship that goes into creating these beautiful pieces.
